Introduction
Large-scale renewable energy plants must demonstrate compliance with transmission system requirements before they are allowed to connect to the grid. Grid operators require detailed simulation studies to verify that a plant can operate within voltage, frequency, and power quality limits under different operating conditions.

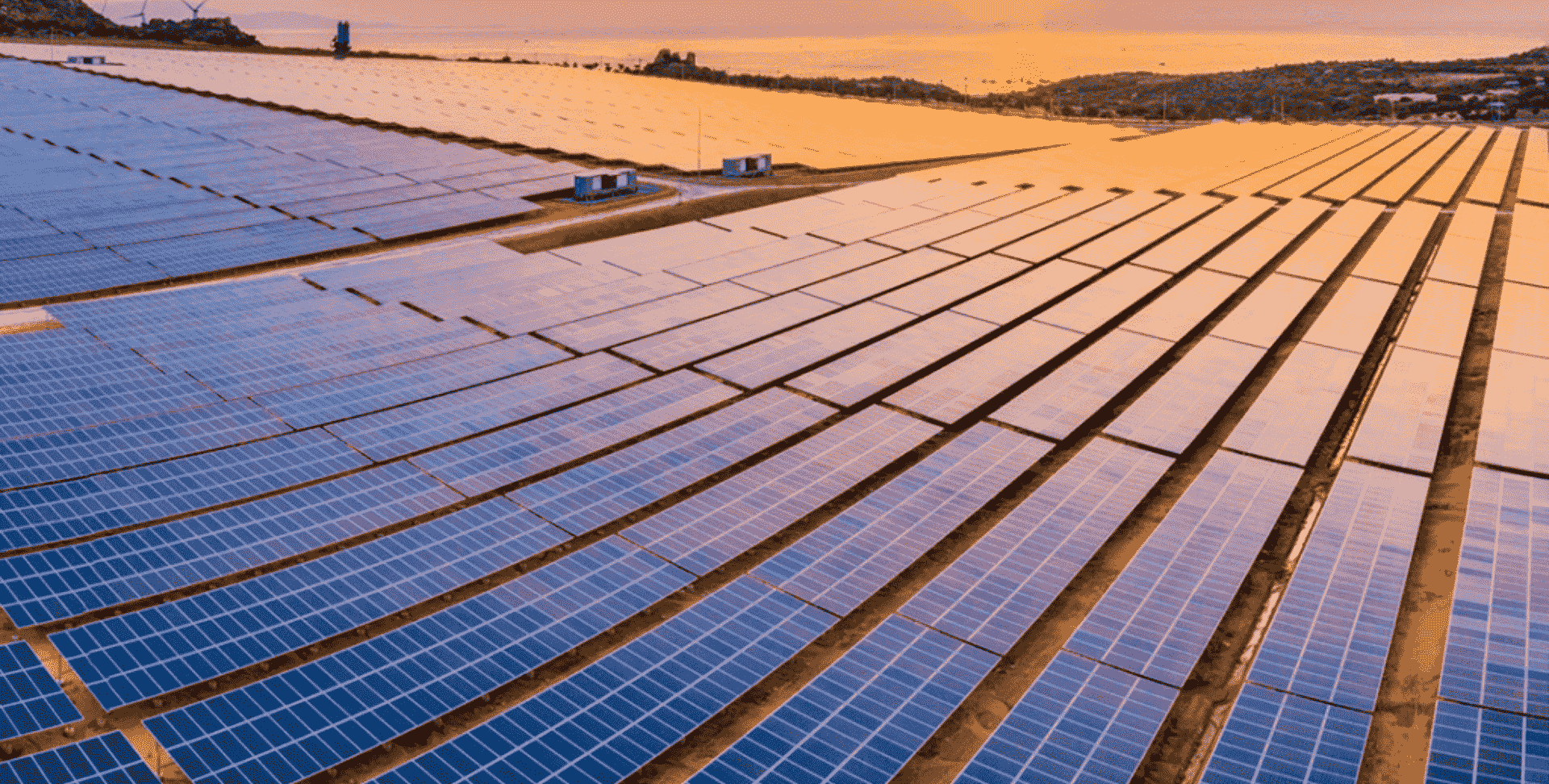

Power Projects carried out grid compliance studies for a large solar power development located in Rajasthan, India. The project consisted of two utility-scale solar plants with a combined capacity of approximately 600 MW connected to the interstate transmission network.
The purpose of the engineering study was to assess the electrical behaviour of the solar generation system and confirm that the plant could operate within grid code requirements under both normal and disturbance conditions.
The study involved developing detailed simulation models of the plant and performing system-level analysis to evaluate power quality, reactive power capability, and dynamic performance during grid disturbances.
The Challenge
Connecting large solar plants to high-voltage transmission networks introduces several technical challenges that must be evaluated before grid integration.
In this project, the solar generation capacity was significant and connected through a shared grid infrastructure. When operating at full output, the combined generation could have a substantial influence on system voltage stability and reactive power behaviour at the point of interconnection.
The grid operator required the plant to demonstrate compliance with several performance requirements defined in grid connectivity regulations. These requirements included reactive power capability, fault ride-through behaviour, power quality limits, and frequency response performance.
Another key challenge involved the inverter-based nature of solar generation. Unlike conventional synchronous generators, inverter-based resources rely on power electronic converters to regulate voltage and reactive power. The behaviour of these converters during grid disturbances must be carefully evaluated through dynamic simulations.
The plant was also required to demonstrate stable operation across a wide frequency range and respond appropriately to changes in grid frequency.
Without detailed simulation studies, it would not be possible to confirm that the solar plant could maintain stable operation during disturbances such as voltage dips, frequency variations, or rapid changes in power output.
The Solution
Power Projects carried out a comprehensive grid compliance study to evaluate the electrical performance of the solar generation system.
The study involved developing detailed electrical simulation models of the plant using industry-standard power system simulation tools. The modelling approach included representation of the solar inverter systems, transformers, and grid interconnection network.
The analysis was performed using specialised power system simulation platforms capable of representing both steady-state and electromagnetic transient behaviour.
Several simulation studies were performed to verify compliance with grid connectivity requirements.
Reactive power capability simulations were conducted to assess whether the plant could operate across the required power factor range at different voltage levels at the point of interconnection. These simulations produced capability curves that demonstrate the plant’s ability to provide reactive power support under varying grid conditions.
Power quality analysis was performed to evaluate harmonic distortion, flicker levels, and DC current injection at the grid connection point. These tests are required to ensure that the solar plant does not introduce unacceptable power quality disturbances into the transmission system.
Dynamic performance studies were also conducted to evaluate the plant’s behaviour during voltage disturbances. Low Voltage Ride Through (LVRT) and High Voltage Ride Through (HVRT) simulations were performed to verify that the plant could remain connected and stable during grid faults.
The simulations analysed the behaviour of electrical parameters such as active power, reactive power, current, and voltage during disturbance events. These results help verify that the inverter systems respond correctly during grid voltage dips and recover normal operation after the disturbance clears.
Frequency response tests were also carried out to evaluate the plant’s ability to operate across the required grid frequency range. The plant’s response to frequency variations and control system droop settings was analysed to confirm compliance with frequency control requirements.
Dynamic reactive power support tests were performed to evaluate the plant’s voltage control capability under different operating modes, including voltage control, reactive power control, and power factor control.
In addition to these tests, ramp rate simulations were conducted to demonstrate that the plant could increase or decrease power output within the permitted ramping limits defined by grid regulations.
The Impact
The study provided a detailed understanding of the electrical behaviour of the solar power plant under both steady-state and dynamic operating conditions.
Simulation results confirmed that the plant could maintain stable operation across the required grid frequency range. The inverter systems were capable of providing reactive power support across the specified power factor limits, helping maintain voltage stability at the point of interconnection.
Power quality analysis confirmed that harmonic distortion and flicker levels remained within acceptable limits for transmission system operation.
The ride-through simulations demonstrated that the solar plant could remain connected during voltage disturbances and recover stable operation once normal grid conditions were restored.
Dynamic reactive power simulations also confirmed that the plant’s control system could regulate voltage effectively during changing operating conditions.
Overall, the results showed that the solar generation system was capable of meeting the required grid performance criteria when operating within the defined control parameters.
The study provided the technical basis required for evaluating the grid integration of the solar plant and supporting the grid connection approval process.
Conclusion
Grid compliance studies play a critical role in ensuring that large renewable energy plants can integrate safely and reliably into transmission networks.
For this solar power development in Rajasthan, Power Projects performed detailed simulation studies to evaluate reactive power capability, power quality performance, ride-through behaviour, frequency response, and ramping capability.
The analysis confirmed that the solar plant configuration could operate in accordance with grid connectivity requirements while maintaining stable performance under various operating conditions.
Such studies provide system operators and project developers with the technical assurance required for the successful integration of large renewable energy resources into modern power systems.
